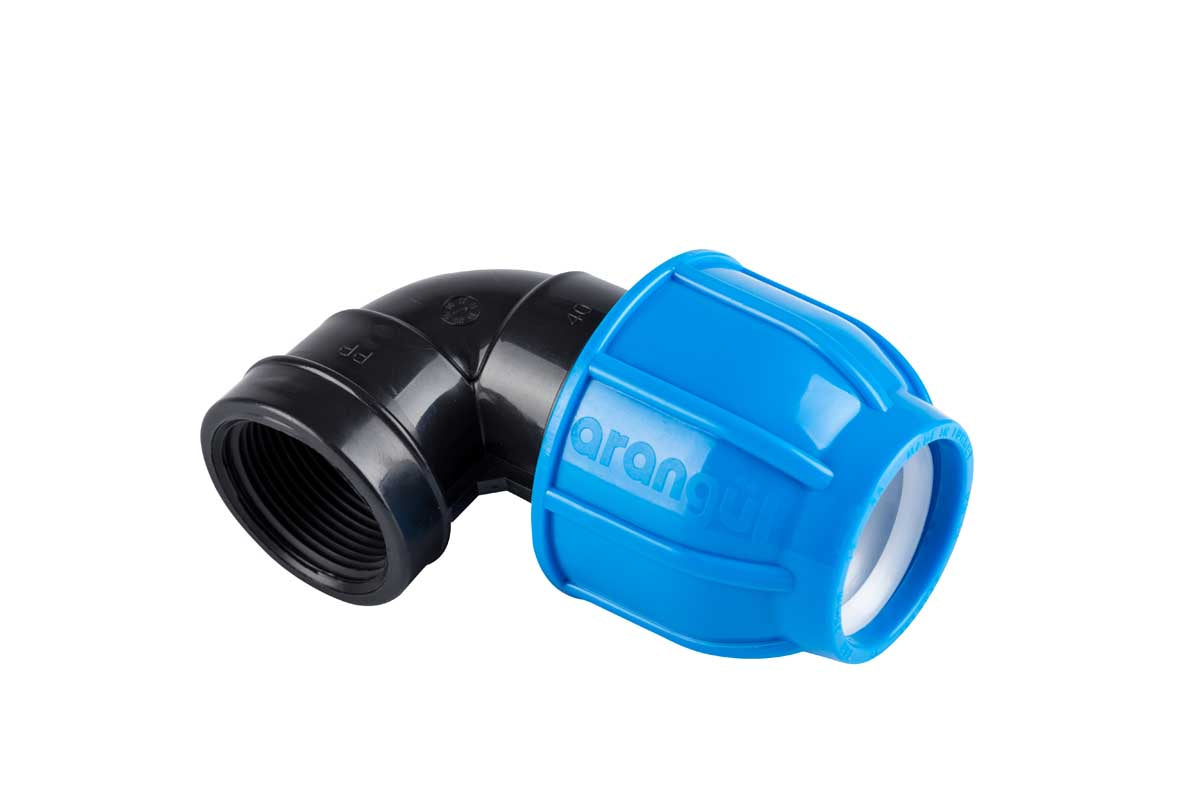

Female Elbow PN16 Pipe Fitting Supplier in Qatar
The Female Elbow PN16 is a compression pipe fitting that combines a 90-degree directional change with a female threaded end, allowing a PE or HDPE pipe to connect directly to a female BSP threaded outlet, valve, or fixture. Rated at PN16 pressure, this fitting is engineered for reliable performance in water supply, plumbing, and irrigation systems across Qatar.
Unlike a standard equal elbow, the Female Elbow PN16 serves as a transition fitting — one end compresses onto a PE pipe while the other end threads onto a female-threaded component, making it an essential fitting wherever a pipeline meets a valve, tap, pump, or threaded connection point.
SSK Trading WLL is a trusted Female Elbow PN16 supplier in Qatar, supplying contractors, MEP companies, plumbers, and irrigation engineers with fast delivery and competitive bulk pricing across Doha and all Qatar locations.
Key Features
- 90-degree elbow with one compression end and one female BSP threaded end
- PN16 pressure rating — handles up to 16 bar for medium to high-pressure systems
- Compression side connects directly to PE and HDPE pipes — no glue or special tools needed
- Female threaded end connects to valves, taps, pumps, and threaded fixtures
- Leak-proof EPDM O-ring seal with stainless steel grip ring on compression side
- UV and corrosion resistant — built for Qatar's outdoor and high-temperature environments
- Available in multiple sizes for versatile plumbing and irrigation applications
Technical Specifications
| Specification | Details |
|---|---|
| Type | Female Elbow (transition fitting) |
| Pressure Rating | PN16 (16 bar) |
| Compression End | PE / HDPE pipe connection |
| Threaded End | Female BSP thread |
| Bend Angle | 90 degrees |
| Material | HDPE / PP body |
| Seal | EPDM O-ring |
| Grip Ring | Stainless steel |
| Application | Water supply, plumbing, irrigation, MEP |
| Compatibility | PE and HDPE pipes with female threaded outlets |
Common Uses
- Connecting PE water supply pipes to female-threaded valves and tap outlets
- Routing irrigation pipelines around corners and into threaded sprinkler heads
- Transitioning from PE pipework to threaded plumbing fixtures in buildings
- MEP water distribution systems requiring threaded-to-compression transitions
- Infrastructure water supply networks with 90-degree direction changes at connection points
Product features
Product features
The Female Elbow PN16 is a 90-degree transition pipe fitting rated at 16 bar
pressure, combining a compression end for PE or HDPE pipes with a female BSP
threaded end for connecting to valves, taps, and threaded fixtures. Features
a leak-proof EPDM O-ring seal and stainless steel grip ring on the
compression side for a secure, tool-free installation. UV and corrosion
resistant — engineered to perform in Qatar's demanding outdoor and
high-temperature conditions. Available in multiple size combinations to suit
plumbing, irrigation, and MEP applications.
Materials and care
Materials and care
Body Material: High-density polyethylene (HDPE) or polypropylene (PP)
Compression Seal: EPDM O-ring for watertight connection on PE pipe end
Grip Ring: Stainless steel for secure pipe hold on compression side
Threaded End: Female BSP thread for connection to male-threaded fixtures
Pressure Rating: PN16 (16 bar)
Temperature Range: Suitable for cold and ambient water systems
Care Instructions: Store in a cool, dry area away from direct sunlight
before installation. Inspect the O-ring seal before fitting. Ensure the PE
pipe end is cut cleanly and squarely before insertion into compression side.
Apply PTFE thread tape to the male-threaded component before connecting to
the female thread end to ensure a leak-free seal. Do not overtighten —
hand-tighten the compression nut until snug. Compatible with PE and HDPE
pipes on the compression side only.
Merchandising tips
Merchandising tips
Installation Tip: Always apply PTFE thread tape (plumber's tape) to the male
thread of the valve or fixture before screwing into the female threaded end
of this fitting — this ensures a leak-free threaded connection under pressure.
Pipe Prep Tip: Cut the PE pipe end cleanly and squarely before inserting
into the compression side. A clean, square cut ensures the O-ring seats
correctly and prevents leaks at the joint.
Sizing Tip: Female Elbow PN16 fittings are sized by both the compression
pipe OD and the BSP thread size — for example 25mm x ¾" BSP. Always confirm
both dimensions before ordering to avoid mismatched fittings on site.
Project Tip: Use the Female Elbow PN16 at transition points where your PE
pipeline meets a threaded valve or fixture — such as at irrigation zone
valves, pump inlets, or building entry points. This eliminates the need for
separate adaptor fittings at these junctions.
