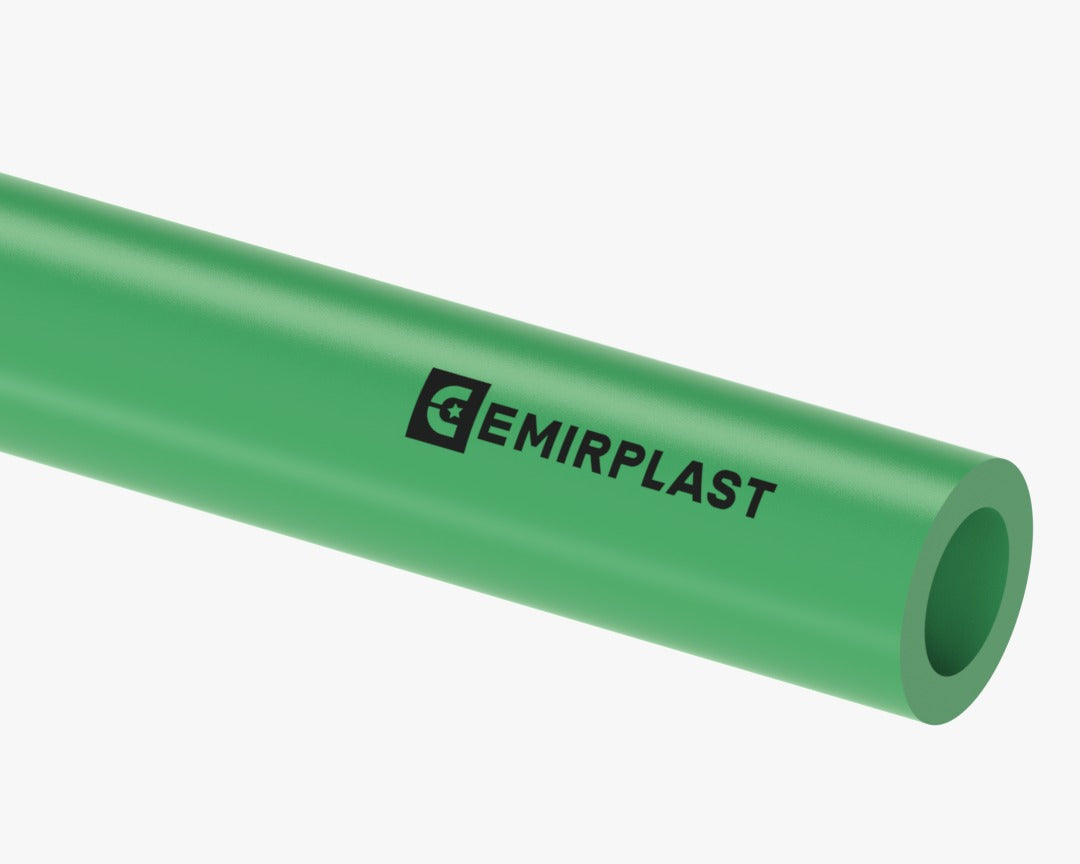

PPR Pipe PN16 SDR7.4 4m Green Qatar
PPR Pipe PN16 SDR7.4 4m Green Qatar
The PPR Pipe PN16 SDR7.4 is a standard-pressure polypropylene random copolymer pipe rated at 16 bar with a Standard Dimension Ratio of 7.4 indicating a standard wall thickness suited for regular cold water supply applications. Available in 4-metre standard lengths with a green stripe that identifies it as a cold water supply pipe, this PPR pipe is the most widely used pipe specification for residential, commercial, and light MEP plumbing installations across Qatar.
Compared to the PN20 SDR6 pipe, the PN16 SDR7.4 offers a more economical solution for standard-pressure cold water systems making it the go-to specification for most building plumbing projects where pressures do not exceed 16 bar.
Like all PPR pipe systems, joints are made using heat fusion welding creating a permanent, molecular bond between pipe and fitting that is completely leak-free and maintenance-free for the lifetime of the building.
SSK Trading WLL is a trusted PPR pipe PN16 supplier in Qatar, supplying SDR7.4 pipes to MEP contractors, plumbing companies, and building contractors across Doha and all Qatar locations.
Key Features
- PN16 pressure rating — handles up to 16 bar for standard cold water systems
- SDR7.4 standard wall thickness — cost-effective for regular plumbing applications
- Green stripe color coding — universally identifies cold water supply pipe
- 4-metre standard lengths for efficient site handling and installation
- Heat fusion welded joints — permanent, leak-free connections for building lifetime
- Corrosion-free polypropylene material — no rust, scale, or chemical reaction
- Smooth internal bore — maintains consistent flow rate with minimal pressure drop
- Long service life — PPR pipe systems designed to last 50+ years
Technical Specifications
| Specification | Details |
|---|---|
| Material | PPR — Polypropylene Random Copolymer |
| Pressure Rating | PN16 (16 bar) |
| SDR | SDR 7.4 (standard wall) |
| Length | 4 metres per piece |
| Color | White body with green stripe |
| Stripe Color | Green — cold water identification |
| Connection Method | Heat fusion welding |
| Application | Standard cold water supply, MEP, plumbing |
| Available Sizes |
20mm, 25mm, 32mm, 40mm, 50mm, 63mm |
Common Uses
- Cold water supply lines in standard residential and commercial buildings
- MEP water distribution in low to medium-rise construction projects
- Building services plumbing for cold water across Qatar
- General plumbing installations replacing old metal or UPVC pipe systems
- Cost-effective cold water pipe solution for standard pressure building systems
SSK Trading supplies PPR Pipe PN16 SDR7.4 in bulk for MEP contractors, plumbing companies, and building contractors across Qatar. Most orders are delivered within 1–2 working days, with same-day delivery available for urgent site requirements. No minimum order quantity.
Product features
Product features
Standard-pressure PPR cold water pipe rated at PN16 (16 bar) with SDR7.4
wall thickness for residential and commercial plumbing installations. Green
stripe identifies cold water use. Available in 4-metre lengths with heat
fusion welded joints for permanent, leak-free connections. Most economical
PPR pipe specification for standard building plumbing systems in Qatar.
Materials and care
Materials and care
Material: PPR — Polypropylene Random Copolymer
Pressure Rating: PN16 (16 bar) | SDR: 7.4 | Length: 4 metres
Connection: Heat fusion welding only — use correct PPR welding tool and
temperature per pipe size. Store horizontally in shade before installation.
Merchandising tips
Merchandising tips
For standard residential and commercial cold water systems in Qatar,
PN16 SDR7.4 is the most cost-effective PPR specification — upgrade to
PN20 SDR6 only when system pressure exceeds 16 bar or project specs require it.
Always cut pipe ends squarely before fusion welding — an angled cut
creates an uneven joint that weakens under pressure. Use a PPR pipe
cutter for clean, square cuts every time.
